Mounting accessories for sensors

JS Energi mounting accessories for sensors.

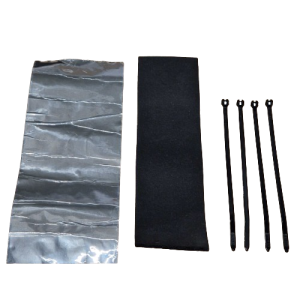

JS Energi mounting accessories for sensors include:
Cable ties: 4 pcs
Aluminum tape: 20 cm
Insulating cellular rubber tape: 20 cm

One kit should be sufficient for one sensor replacement. With the help of this kit, the sensor will last longer and show more accurate values.

Preparation, mounting step 1
Before mounting the sensor, ensure that the mounting location is free from dirt, corrosion, and other things that can affect its function.

The purpose of the cable ties, mounting step 2
The purpose of the cable ties is to hold the sensor in place, as it is important that the sensor is in the correct position on the pipe. For example, a sensor on a refrigerant pipe should not be placed between "4-8 o'clock" as the oil can act as an insulator.
The cable ties are also used to secure the sensor cable so that it does not hang and risk getting caught in something. Before removing the old sensor, take a photo of the placement to ensure you know how it should be mounted.

Note the following! There are certain sensors where you should not attach the cable ties to the sensor body, for example CTC suction gas, in which case follow the manufacturer's recommendations or do not tighten too hard.

The purpose of the aluminum tape, mounting step 3
The aluminum tape is used to reflect heat and moisture so that the sensor is not affected by this. Attach the aluminum tape around the sensor so that water does not enter and remain in the sensor.

The purpose of the cellular rubber tape, mounting step 4
Attach the cellular rubber tape on the outside of the aluminum tape. It will insulate the temperature so that the sensor can get correct values from the pipe.

Good luck with the replacement and mounting of the sensor!
