Circulation pump Perfecta Core2 25F -70-120
We would love to help! Do not hesitate to contact us via our chat, by phone (+44) 8082 8080 07 or by sending an email to [email protected].

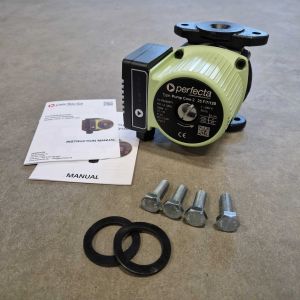

Perfecta Core2 25F-7-120 – Energy-efficient circulation pump with flanged connection
Perfecta Core2 25F-7-120 is a high-performance circulation pump with flanged connection, specially designed for pumping clean water in both domestic and industrial heating systems. It is ideal for use in heating systems with variable flow, such as radiator systems with thermostatic control, as well as in systems with low flows and large temperature differences, such as solar thermal systems.
Features and applications:
- Flow rate: 3,4 m³/h
- Head: 7 metres
- System pressure: Up to 1,0 MPa
- Connection: Flange
- Temperature range: +2 °C to +110 °C
- Port-to-port length: 120 mm
Energy-efficient motor:
- Synchronous motor with fixed magnetic rotor – optimised for low energy consumption
- Stepless speed control automatically adapts to demand
- Ceramic shaft and bearings for extra wear resistance
- Double-insulated motor winding and stationary component in stainless chromium-alloy steel
Pump advantages:
- Glandless design for high operational reliability
- Pump housing in robust cast iron with protective cataphoretic coating
- Composite impeller for long service life and efficient operation
- Flange connections for simple and secure installation
Compatible media:
The pump handles non-aggressive and non-explosive liquids with low viscosity (up to 10 cSt), free from solid particles and fibres – ideal for coolants without mineral oils.
| Manufacturer SKU | 2570120 |
|---|---|
| JS ID | PE2570120-0001 |
| Brand | Perfecta |
| Estimated delivery time | 4-7 |
